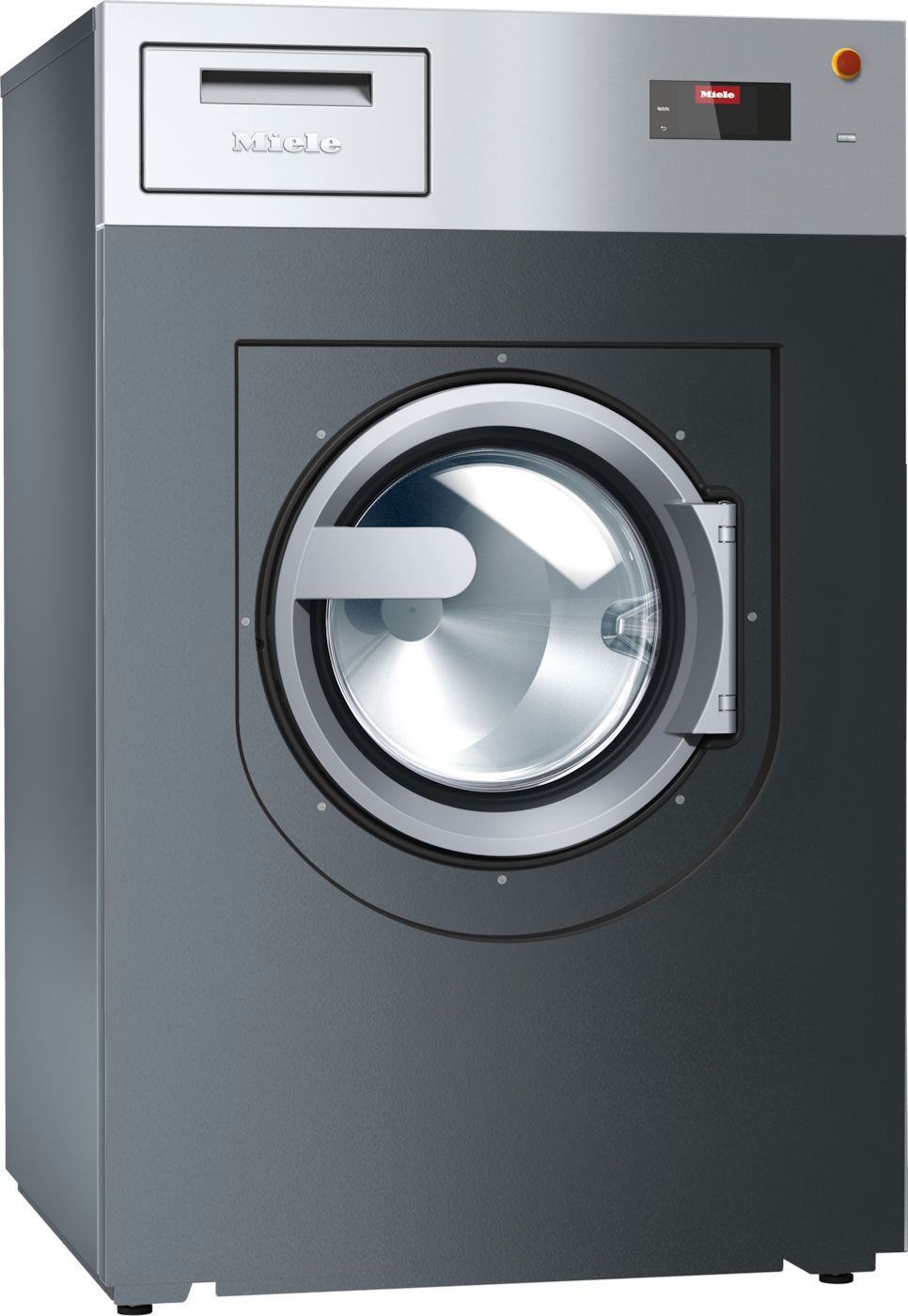

PWM 916 [SI DV DD]
Professional washing machine, steam heating (indirect) with detergent drawer, M Touch Pro Plus – freely programmable.
- Drum volume 4.94 (140) ft³ (l), load size 35 (15.5) lb (kg)
- Top cleaning & consumption values – innovative Miele technologyNote
Patented honeycomb drum 2.0 and ideal suds container geometry ensure efficient washing with minimal consumption values.*Patent: EP 2 700 744 B1 - Ideal operation thanks to touch colour display – M Touch Pro PlusNote
Access all wash programs and advanced professional machine functions easily and intuitively via the clear text touch display. - Simple and safe operation thanks to automatic door lockNote
The door can be opened and closed via OneFingerTouch thanks to the automatic door lock. - Connected for the future using LAN and Wi-FiAll the information you need
Prepared for connection to high-performance software solutions.*Note: the availability of the software solution is country-specific
Product benefits
ECO programs
Save up to 42% on energy*Based on the example of the PWM 916 with cold water connection, Eco Colors or Eco Colors Intensive compared with standard Colors program, with cold water connection. This information is based on laboratory values and can differ in practice.
Particularly efficient reprocessing of normally or lightly soiled laundry in the ECO program.
EcoSpeed – patented wash rhythm*European patent: EP 1354997 B1
Rebalanced washing technique and water consumption
Intensive cleaning with reduced water consumption due to optimized changes in speed.
Exclusive to Miele
Patented pre-spin*European patent: EP 2 003 236 B1
Clean from the start
Perfect cleanliness Cleaning cloths are rinsed out before the start of the washing process.
Efficient spring-in-spring system*German patent: DE 102010037103 B3
Extremely smooth running
Extremely smooth running, even at high spin speeds, thanks to efficient suspension system.
Large door opening
Quick loading and unloading
Simple loading and unloading thanks to large door opening with diameter of 415 mm.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
ECO programs
Save up to 42% on energy*Based on the example of the PWM 916 with cold water connection, Eco Colors or Eco Colors Intensive compared with standard Colors program, with cold water connection. This information is based on laboratory values and can differ in practice.
Particularly efficient reprocessing of normally or lightly soiled laundry in the ECO program.
Large capacity
More space
Miele Professional washing machines have a large capacity drum and can therefore accommodate large loads.
Steam heating method
Full steam ahead
If steam is available, this can be used directly for heating the Miele commercial laundry machines.
Efficient hot water connection
Quick and economical
Connection to a hot water supply enables excellent savings in time and energy with minimal effort.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
High temperature consistency
We keep our promises
For reliable cleaning results and maximum hygiene, the temperature of the washing water is monitored constantly.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
EcoSpeed – patented wash rhythm*European patent: EP 1354997 B1
Rebalanced washing technique and water consumption
Intensive cleaning with reduced water consumption due to optimized changes in speed.
Exclusive to Miele
Patented pre-spin*European patent: EP 2 003 236 B1
Clean from the start
Perfect cleanliness Cleaning cloths are rinsed out before the start of the washing process.
Precisely controlled water consumption
Every drop counts
The flow meter monitors the volume of water intake precisely for maximum efficiency.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Efficient spring-in-spring system*German patent: DE 102010037103 B3
Extremely smooth running
Extremely smooth running, even at high spin speeds, thanks to efficient suspension system.
Reliable water drainage
No sharp corners or edges
The professional drain valve ensures trouble-free drainage even with coarse soiling.
Excellent durability
Ultimate quality
Professional technology ensures excellent reliability and durability for daily work routine.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Large door opening
Quick loading and unloading
Simple loading and unloading thanks to large door opening with diameter of 415 mm.
Countdown indicator
An eye on the time
After the program has started, the display shows the cycle time remaining.
Add laundry
Open the door and add laundry
Did you forget an item of laundry? Don’t worry – simply open the door and add the laundry.*It is possible to add laundry within the first few minutes of starting a program.
Subject to technical changes; no liability accepted for the accuracy of the information given! Figures as examples for showing the product benefit.
Product details
PWM 916 [SI DV DD]
EAN 4002516445142 / Article number 51916027NAM / Material number 11803280
EAN 4002516445142 / Article number 51916027NAM / Material number 11803280
Construction type | Front loader |
---|---|
Product line | Performance Plus |
Front | Iron grey |
Control panel colour | Stainless steel |
Load ratio | 1:9 |
Load in lbs. (kg) | 35 (15.5) |
Drum volume in l | 4.94 (140) ft³ (l) |
Door opening [Ø] in in. (mm) Large drum opening Large drum opening for fast, ergonomic loading and unloading ensures smooth operation. | 16 3/8 (415) |
Door-opening angle in degrees | 180 |
Door hinging | right |
Automatic door lock | |
Innovative suds container | |
Maintenance-free motor with frequency converter | |
Patented stainless steel honeycomb drum 2.0 |
Tested virucidal efficacy | |
---|---|
Proven hygiene | |
Specific water consumption for cold water connection in l/kg Note In the Cottons 60°C program with connection to cold water. | 6.2 |
Specific energy consumption for cold water connection in kWh/kg Note In the Cottons 60°C program with connection to cold water. | 0.14 |
Specific water consumption for hot water connection in l/kg Note In the Cottons 60°C program with connection to hot and cold water, hot rinse. | 5.9 |
Specific energy consumption for hot water connection in kWh/kg Note In the Cottons 60°C program with connection to hot and cold water, hot rinse. | 0.06 |
Water consumption with cold water connection in l Note In the Cottons 60°C program with connection to cold water. | 99.2 |
Water consumption for cold water connection in Mops standard 60°C program in l | 182.2 |
Energy consumption with cold water connection in kWh Note In the Cottons 60°C program with connection to cold water. | 2.26 |
Energy consumption for cold water connection in Mops standard 60°C program in kWh | 3.21 |
Program duration with cold water connection in minutes Note In the Cottons 60°C program with connection to cold water. | 46 |
Water consumption with hot water connection in l Note In the Cottons 60°C program with connection to hot and cold water, hot rinse. | 94.4 |
Water consumption for hot water connection in Mops standard 60°C program in l | 178.1 |
Energy consumption with hot water connection in kWh Note In the Cottons 60°C program with connection to hot and cold water, hot rinse. | 0.96 |
Energy consumption for hot water connection in Mops standard 60°C program in kWh | 1.33 |
Program duration with hot water connection in minutes Note In the Cottons 60°C program with connection to hot and cold water, hot rinse. | 42 |
Water consumption in Economy program with cold water connection in l Note In the Colours ECO 50 °C program with connection to cold water. | 92.8 |
Energy consumption in Economy program with cold water connection in kWh Note In the Colours ECO 50 °C program with connection to cold water. | 1.48 |
Program duration with cold water connection in Economy program in minutes Note In the Colours ECO 50 °C program with connection to hot water. | 33 |
Water consumption in Economy program with hot water connection in l Note In the Colours ECO 50 °C program with connection to hot water. | 91.2 |
Energy consumption in Economy program with hot water connection in kWh Note In the Colours ECO 50 °C program with connection to hot water. | 0.48 |
Program duration with hot water connection in Economy program in minutes | 32 |
Program cycle time in minutes for Mops standard 60°C program with cold water connection | 50 |
Program cycle time in minutes for Mops standard 60°C program with hot water connection | 47 |
Residual moisture with cold rinse in % | 48 |
Residual moisture with hot rinse in % | 44 |
Residual moisture when reprocessing wiping cloths in % | 25 |
Spin speed in rpm | 1075 |
g-factor | 462 |
Tested operating hours Note Our machines undergo intensive testing under laboratory conditions. The actual operating hours may vary depending on actual usage behaviour, maintenance, and care of the machine. | 30000 |
Control type | M Touch Pro Plus |
---|---|
Programmability | Freely programmable |
Max. delay start in h | Can be selected freely Delay start freely selectable The program start time can be pre-set in advance for efficient planning. |
Time left display | |
Program sequence indicator | |
Choice of display language | |
Option to enter weight prior to start of program |
Detergent drawer | 3 compartments |
---|---|
Maximum number of connections for liquid dispenser pumps [number] | 12 Note Maximum number of mechanical connections for dispenser pumps. In the case of the Profitronic M and Profitronic D controllers, multi-function modules are required for electronically controlling the pumps. With the M Touch Pro and M Touch Pro Plus controllers, connector boxes must be used to establish the connection. |
Empty sensing |
Heating type | Indirect steam Dual heating Dual heating facilitates flexible switching between the heating types steam (direct) and electric according to need and availability. |
---|---|
Electrical connection | 240V 60HZ 1 PH 3 WIRE |
Steam heater rating in kW | 37 |
Total rated load in kW | 2.3 |
Fuse rating in A | 20 |
Cold water [number] | 3 x 1/2" hose w/ 3/4" union |
---|---|
Hot water [number] | 1x 1/2" hose w/ 3/4" th. union |
Hard water (optional) [number] | 2 x 1/2" w/ 3/4" union |
Drain valve | DN 70 Reliable water drainage The professional drain valve ensures trouble-free drainage even with coarse soiling. |
Steam connection | 2 x ½" |
---|
External dimensions, net height in in. (mm) | 57 1/8 (1450) |
---|---|
External dimensions, net width in in. (mm) | 36 7/16 (924) |
External dimensions, net depth in in. (mm) | 37 9/16 (954) |
External dimensions, gross height in in. (mm) Note Including packaging | 62 7/16 (1585) |
External dimensions, gross width in in. (mm) Note Including packaging | 47 11/16 (1210) |
External dimensions, gross depth in in. (mm) Note Including packaging | 44 1/2 (1130) |
Net weight in lbs. (kg) | 779 (353) |
Gross weight in lbs. (kg) Note Including packaging | 829 (376) |
Maximum floor load in N | 5209 |
Emission sound pressure level in the workplace Emission sound pressure level in the workplace The emission sound pressure level is a value given to the noise created by the machine. Miele Professional commercial laundry appliances have very low noise levels. | 65 dB(A) re 20 µPa |
---|---|
Heat dissipation into the room in MJ/h Heat output into the room During operation, laundry machines release heat into the surrounding area. The released amount of heat/time depends on the set temperatures and the intensity of use. The stated maximum value can be used to control the temperature of the area or to calculate an increase in room temperature. | 6.48 |
Patented pre-spin | Patented pre-spin* Perfect cleanliness Cleaning cloths are rinsed out before the start of the washing process.European patent: EP 2 003 236 B1 |
---|---|
Cloths treatment | |
3-dimensional imbalance monitoring | |
Disinfection rinse | |
Efficient scoop ribs | |
EcoSpeed | EcoSpeed – patented wash rhythm* Intensive cleaning with reduced water consumption due to optimized changes in speed.European patent: EP 1354997 B1 |
Spring-in-spring system | Efficient spring-in-spring system* Extremely smooth running, even at high spin speeds, thanks to efficient suspension system.German patent: DE 102010037103 B3 |
Temperature monitoring | |
Automatic load recognition+ | |
Volumetric flow meter (optional) | |
Adding laundry | Add laundry Did you forget an item of laundry? Don’t worry – simply open the door and add the laundry.*It is possible to add laundry within the first few minutes of starting a program. |
Program selection via colour frame | |
Efficient ramp-up spin cycle | |
Emergency shut-off | |
Machine-independent accessories |
Recycling rate in % | 92 |
---|
Payment system (optional) | |
---|---|
Optical interface for service access | |
Peak-load negotiation / energy management (optional) | |
Water recovery (optional) | |
LAN | |
Wi-Fi | |
Connector Box |
Breathing masks [number] | 13 |
---|---|
Helmets [number] | 4 |
Protective suits [number] | 2 |
Protective coats [number] | 3 |
Chemical protection suits [number] | 1 |
Synthetic duvets [number] | 1 |
Synthetic pillows [number] | 3 |
Down comforters [number] | 1 |
Down pillows [number] | 3 |
Cleaning cloths, 22 g [number] | 355 |
Cotton mops, 40 cm / 190 g [number] | 82 |
Cotton mops, 50 cm / 220 g [number] | 71 |
Microfibre mops, 40 cm / 120 g [number] | 130 |
Microfibre mops, 50 cm / 170 g [number] | 91 |
Mops, office, 100 g [number] | 160 |
Mops, stairway, 150 g [number] | 105 |
Horse summer blankets [number] | 3 |
Splash protection IPX4 | |
---|---|
c ETL US | |
Complies with Machinery Directive 2006/42/EC |
